Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

When removing the fender, wrap protective tape around a screwdriver or remover not to damage components.

Information

Removing or installing the hood requires an assistant.

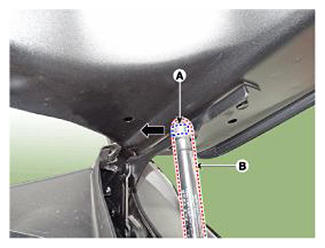

Using a screwdriver, lift the socket clips (A) up slightly on both ends of the lifter (B), and then remove the lifter from the bracket.

Fig 1: Removing Lifter From Bracket
Courtesy of HYUNDAI MOTOR AMERICA

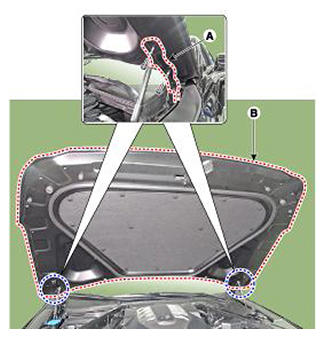

After loosening the hood hinge (A) mounting bolts, remove the hood assembly (B).
Tightening Torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb-ft)

Fig 2: Removing Hood Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood as necessary.
