Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

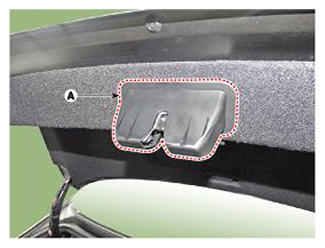

Using a screwdriver or remover, remove the trunk lid latch cover (A).

Fig 1: Locating Trunk Lid Latch Cover
Courtesy of HYUNDAI MOTOR AMERICA

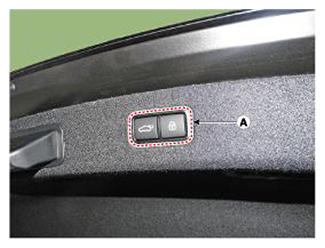

Using a screwdriver or remover, remove the trunk lid switch (A).

Fig 2: Locating Trunk Lid Switch
Courtesy of HYUNDAI MOTOR AMERICA

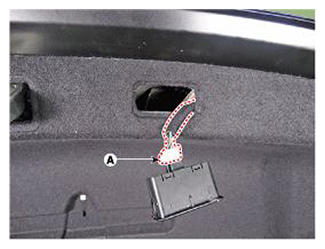

Disconnect the trunk lid switch connector (A).

Fig 3: Detaching Trunk Lid Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the trunk lid weatherstrip.
Disengage the luggage side trim.

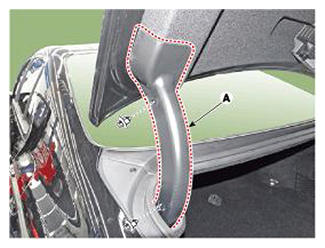

After removing the pin-type retainers, remove the trunk lid side cover (A) by separating the hook from the trunk lid trim.

Fig 4: Removing Trunk Lid Side Cover With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

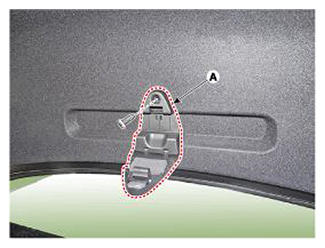

After loosening the mounting screws, remove the trunk lid inside handle (A).

Fig 5: Removing Trunk Lid Inside Handle With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

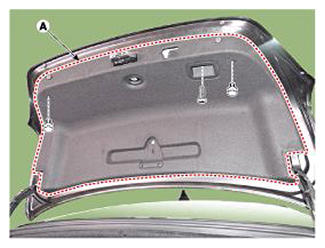

After loosening the mounting screw and clips, remove the trunk lid trim (A).

Fig 6: Removing Trunk Lid Trim With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the trunk lid opens or closes properly.
- Replace any damaged clips.
