Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to protect your hands.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Disconnect the rear seat frame connector (A).
[LH]

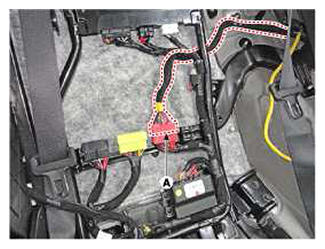

Fig 1: Locating Rear Seat Frame (LH) Connector
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

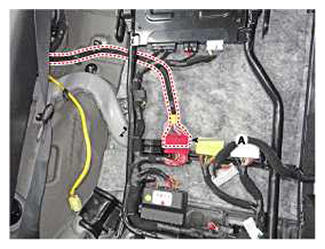

Fig 2: Locating Rear Seat Frame (RH) Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts and nuts, remove the rear seat frame assembly (A).
Tightening Torque:

Bolt: 21.6 - 31.4 N.m (2.2 - 3.2 kgf.m, 15.9 - 23.1 lb-ft)

Nut: 9.6 - 14.7 N.m (1.0 - 1.5 kgf.m, 7.2 - 10.8 lb-ft)

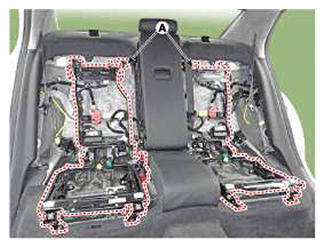

Fig 3: Locating Rear Seat Frame Assembly
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.

Information

Replace any damaged clips (or pin-type retainers).
Make sure the connector is plugged in properly.
