Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components
Take care not to scratch the body surface.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")
Using a screwdriver or remover, remove the outside rear view mirror cover (A).

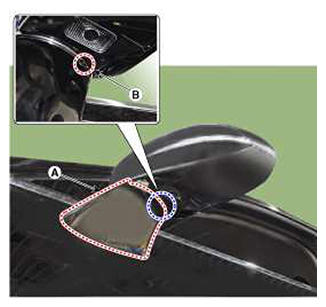

Fig 1: Locating Outside Rear View Mirror Cover
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- When removing the mirror cover, insert a flat head screwdriver to the groove of upper side (B).
Disconnect the outside rear view mirror connector (A).

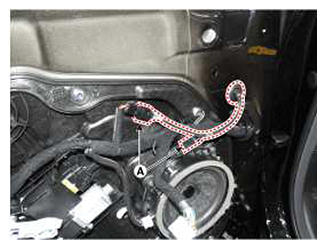

Fig 2: Locating Outside Rear View Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting screws, remove the outside rear view mirror (A).

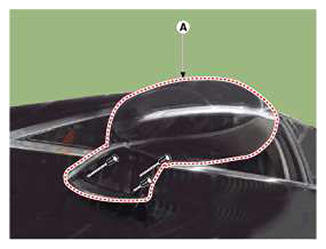

Fig 3: Removing Outside Rear View Mirror With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
