Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Take care not to scratch the body surface.

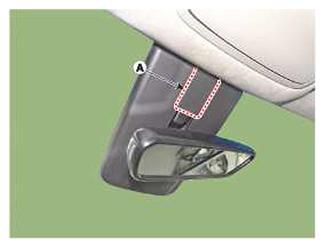

Using a screwdriver or remover, remove the inside rear view mirror cover (A).

Fig 1: Locating Inside Rear View Mirror Cover
Courtesy of HYUNDAI MOTOR AMERICA

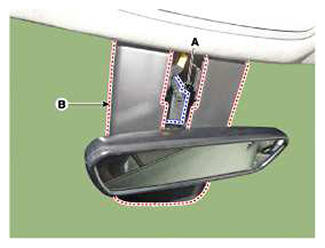

Disconnect the inside rear view mirror connectors (A).
Remove the mirror cover (B).

Fig 2: Locating Inside Rear View Mirror Connectors
Courtesy of HYUNDAI MOTOR AMERICA

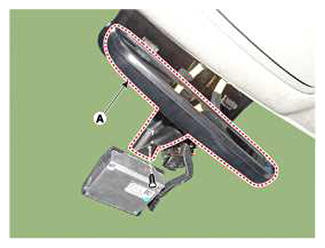

Loosen the mounted screws and push the ECM mirror base upward to remove the ECM mirror assembly (A).

Fig 3: Removing ECM Mirror Assembly With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
NOTE:
- Be careful not to damage the windshield glass.
