Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Wrap tape around the driveshaft spline (TJ) to prevent damage to the boot.
Using the alignment marks (D) made during disassembly as a guide, install the spider assembly (A) and retainer ring (B) on the driveshaft splines (C).

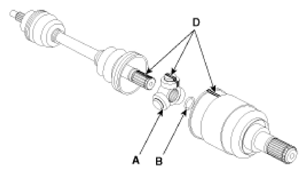

Fig 1: Locating Alignment Marks On Spider Assembly And Retainer Ring
Courtesy of HYUNDAI MOTOR AMERICA

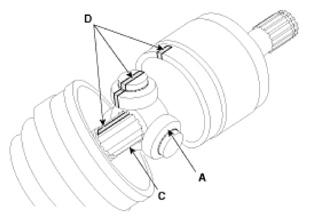

Fig 2: Locating Alignment Marks On Spider Assembly And Driveshaft Splines
Courtesy of HYUNDAI MOTOR AMERICA
Add specified grease to the joint boot as much as it was wiped away at inspection.
Install the both boot band.
Using the SST, secure the TJ boot bands.
[Ear type]

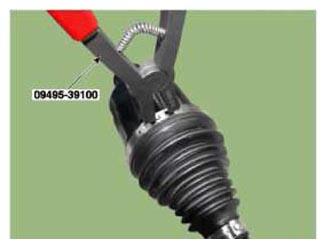

Fig 3: Securing TJ Boot Bands Using SST (Ear Type)
Courtesy of HYUNDAI MOTOR AMERICA

[Hook type]

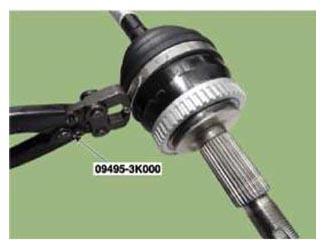

Fig 4: Securing TJ Boot Bands Using SST (Hook Type)
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the boot band.
Install the front driveshaft.
(Refer to Driveshaft Assembly - "FRONT DRIVESHAFT ")
Check the front alignment.
(Refer to Suspension System - "FRONT ALIGNMENT ")
