[General Console]

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Disconnect the connector (A).
[LH]

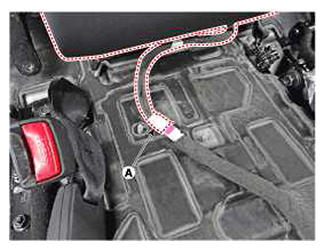

Fig 1: Locating Rear Seat Back Assembly (LH) Connector
Courtesy of HYUNDAI MOTOR AMERICA

[RH]

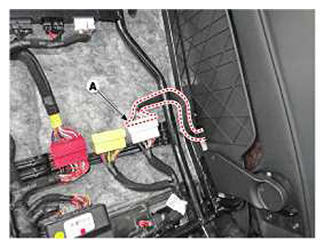

Fig 2: Locating Rear Seat Back Assembly (RH) Connector
Courtesy of HYUNDAI MOTOR AMERICA

[Center]

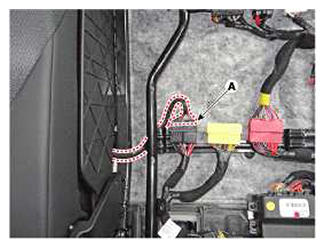

Fig 3: Locating Rear Seat Back Assembly (Center) Connector
Courtesy of HYUNDAI MOTOR AMERICA

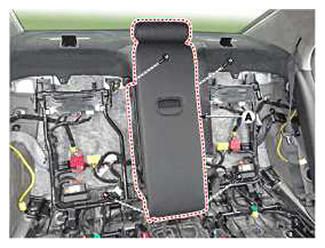

After loosening the mounting bolts, remove the rear console assembly (A).

Fig 4: Removing Rear Console Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector is connected properly.
