[General Console]

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

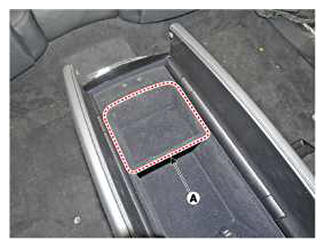

Remove the console armrest tray (A).

Fig 1: Locating Console Armrest Tray
Courtesy of HYUNDAI MOTOR AMERICA

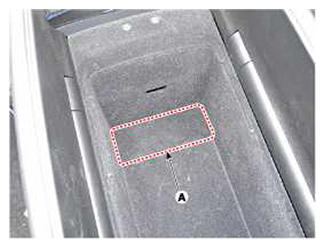

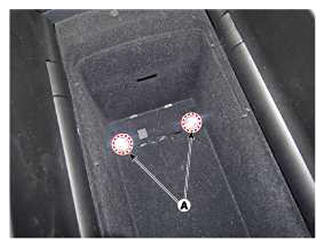

Remove the console armrest service hall (A).

Fig 2: Locating Console Armrest Service Hall
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the console armrest mounting bolts (A).

Fig 3: Locating Console Armrest Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

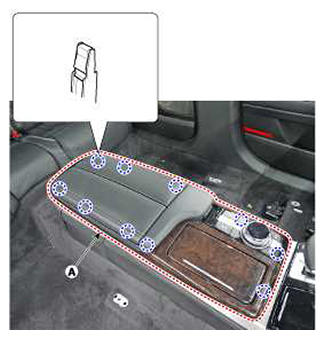

Using a screwdriver or remover, remove the console upper complete assembly (A).

Fig 4: Locating Console Upper Complete Assembly
Courtesy of HYUNDAI MOTOR AMERICA

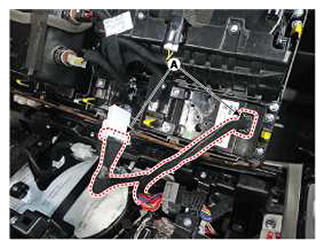

Disconnect the connectors (A).

Fig 5: Locating Floor Console Connectors
Courtesy of HYUNDAI MOTOR AMERICA

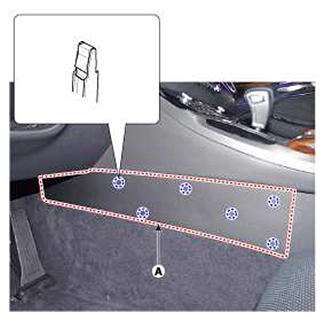

Using a screwdriver or remover, remove the console side cover (A).

Fig 6: Locating Console Side Cover With Clips
Courtesy of HYUNDAI MOTOR AMERICA

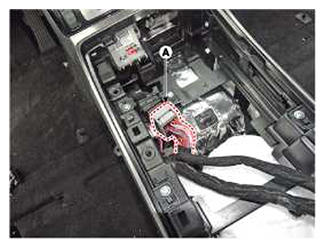

Disconnect the floor console main connector (A).

Fig 7: Locating Floor Console Main Connector
Courtesy of HYUNDAI MOTOR AMERICA

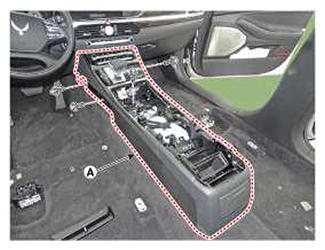

After loosening the mounting bolts, remove the floor console assembly (A).

Fig 8: Removing Floor Console Assembly With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

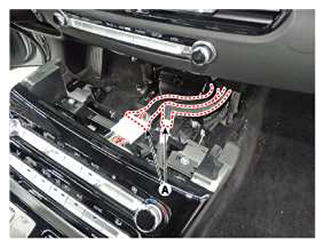

Disconnect the connectors (A).
Remove the floor console assembly.

Fig 9: Locating Floor Console Assembly Connectors
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
