Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

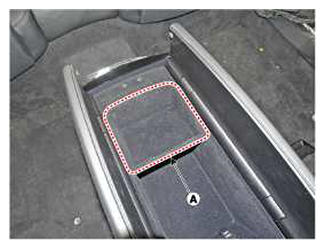

Remove the console armrest tray (A).

Fig 1: Locating Console Armrest Tray
Courtesy of HYUNDAI MOTOR AMERICA

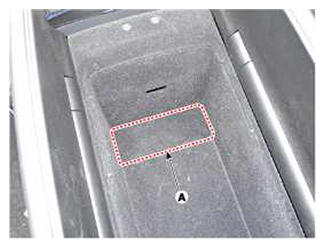

Remove the console armrest service hall (A).

Fig 2: Locating Console Armrest Service Hall
Courtesy of HYUNDAI MOTOR AMERICA

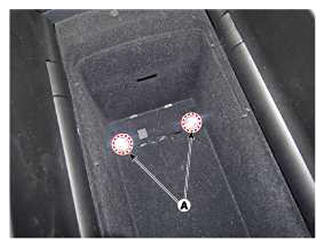

Loosen the console armrest mounting bolts (A).

Fig 3: Locating Console Armrest Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA

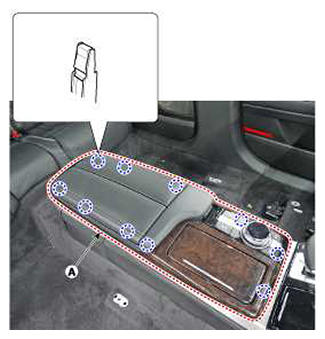

Using a screwdriver or remover, remove the console upper complete assembly (A).

Fig 4: Locating Console Upper Complete Assembly
Courtesy of HYUNDAI MOTOR AMERICA

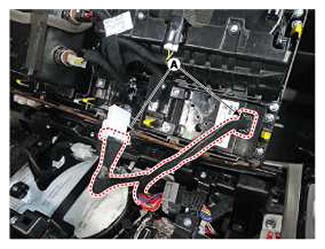

Disconnect the connector (A).

Fig 5: Locating Floor Console Connector
Courtesy of HYUNDAI MOTOR AMERICA

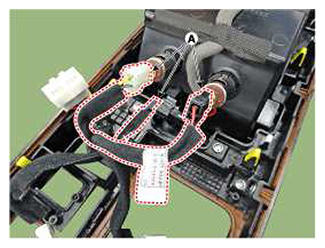

Disconnect the connectors (A).
Remove the front console armrest.

Fig 6: Locating Front Console Armrest Connector
Courtesy of HYUNDAI MOTOR AMERICA

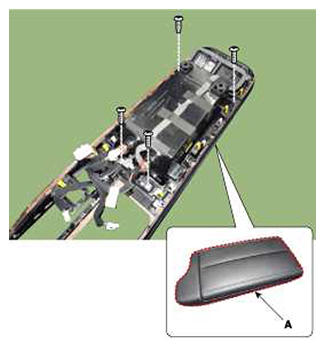

After loosening the mounting screws, remove the front console arm rest (A).

Fig 7: Removing Front Console Armrest With Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged clips (or pin-type retainers).
- Make sure the connector is connected properly.
