Front Seat Multimedia Jack

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

  3. Disconnect the multimedia jack connectors (A).

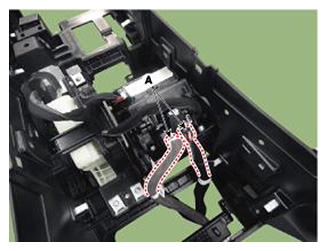

    Fig 1: Locating Multimedia Jack Connectors
    G11406037Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the multimedia jack (A) from the floor console after disengaging the fixed hooks (B).

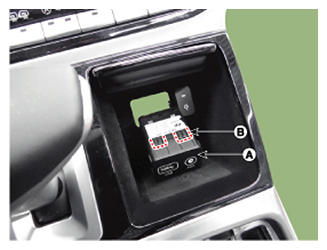

Fig 2: Locating Multimedia Jack And Fixed Hooks
G11406038Courtesy of HYUNDAI MOTOR AMERICA
