Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad side garnish assembly.

    (Refer to Body - "CRASH PAD ")

    CAUTION:
    • When removing with the screwdriver or remover, wrap the protective tape on the tools.
    • Be careful to store and handle the crash pad when removing/installing because lubricant and oil can leave a stain on the trim.
  3. Remove the Heater Control Unit and Center Panel Assembly.

    (Refer to Body - "HEATER & A/C CONTROL UNIT ")

  4. Remove the AVN head unit (A) after loosening the mounting screws and nuts.

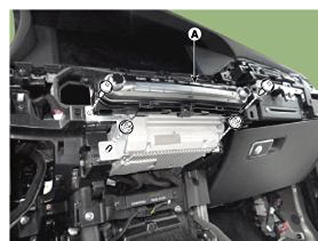

    Fig 1: Removing AVN Head Unit With Mounting Screws And Nuts
    G11405976Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the AVN head unit connectors and cables (A).

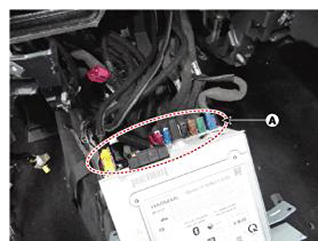

Fig 2: Locating AVN Head Unit Connectors And Cables
G11405977Courtesy of HYUNDAI MOTOR AMERICA
