Terminal Function

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

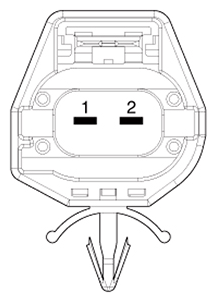

Fig 1: Vacuum Connector Terminal
G11405006Courtesy of HYUNDAI MOTOR AMERICA
Pin No Description
1 Ground
2 Battery (+)
