Components & Components Location: Components: (AWD)

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

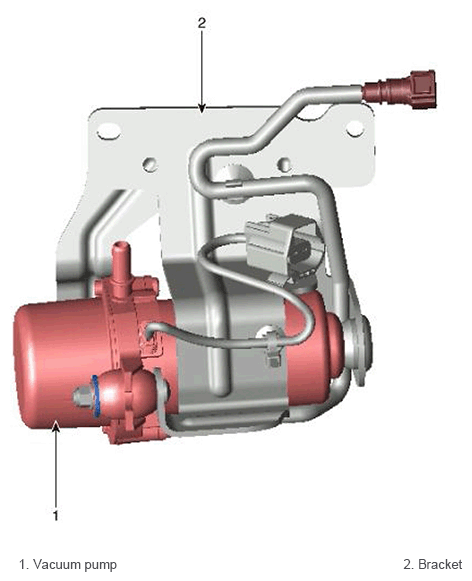

Fig 1: Locating Vacuum Pump And Bracket (AWD) Components
G11405004Courtesy of HYUNDAI MOTOR AMERICA
