Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF and disconnect the negative (-) battery cable.
Remove the lower crash pad.
(Refer to Body - "CRASH PAD ")
Remove the knee airbag.
(Refer to Restraint - "AIRBAG MODULE ")
Disconnect the stop lamp switch connector.

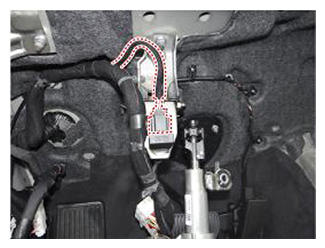

Fig 1: Stop Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Pull the locking plate (A) as indicated by the arrow.

Fig 2: Pulling Locking Plate
Courtesy of HYUNDAI MOTOR AMERICA
Turn stop lamp switch 45° counterclockwise and remove it.

Fig 3: Turning Stop Lamp Switch Counterclockwise
Courtesy of HYUNDAI MOTOR AMERICA
Inspect a removed stop lamp switch along the below procedures.
1. Confirm a normal connection with terminal part.
  - A confirmation can be made to view if the connector has been secured properly and if a connection mark is present.
  Fig 4: Stop Lamp Switch Connector Terminals
  Courtesy of HYUNDAI MOTOR AMERICA
2. Perform the inspection of parts refusal.
