3. Connection Inspection by Part

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Check to view whether or not each connector has been damaged, or terminal surge, or incomplete connection has taken place

[Engine Room Junction Box]

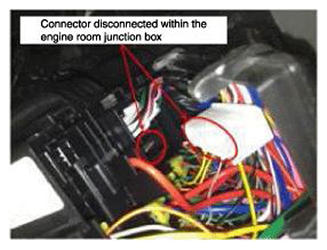

Fig 1: Locating Connector Disconnected (Engine Room Junction Box)

Courtesy of HYUNDAI MOTOR AMERICA

[ESP Control Module]

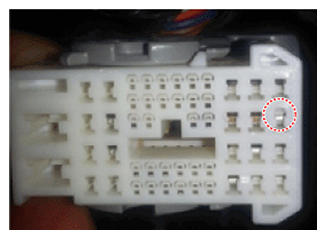

Fig 2: Checking For Terminal Surge Damage (ESP Control Module)

Courtesy of HYUNDAI MOTOR AMERICA
