Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Raise the vehicle, and make sure it is securely supported.
Remove the front wheel and tire (A) from the front hub.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb-ft)

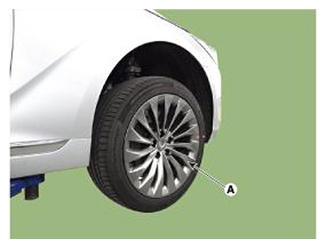

Fig 1: Locating Front Wheel And Tire
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Be careful not to damage the hub bolts when removing the front wheel and tire.
Remove the brake hose mounting bracket from the knuckle.
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

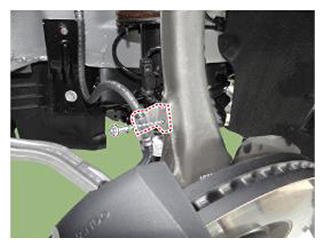

Fig 2: Removing Brake Hose Mounting Bracket From Knuckle
Courtesy of HYUNDAI MOTOR AMERICA
Remove locking pin (A).

Fig 3: Locating Locking Pin
Courtesy of HYUNDAI MOTOR AMERICA
Remove guide pin (A) from the housing.

Fig 4: Locating Guide Pin
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the hose eye-bolt (A) then remove the brake hose.
Tightening Torque:

24.5 - 29.4 N.m (2.5 - 3.0 kgf.m, 18.1 - 21.7 lb-ft)

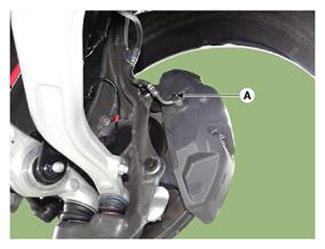

Fig 5: Locating Hose Eye-Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the caliper mounting bolts, and then remove the front caliper assembly (A).
Tightening Torque:

78.5 - 98.1 N.m (8.0 - 10.0 kgf.m, 57.9 - 72.3 lb-ft)

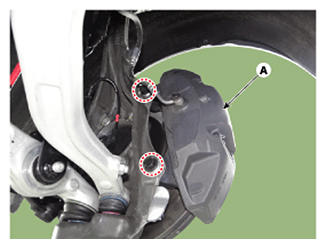

Fig 6: Locating Front Caliper Assembly
Courtesy of HYUNDAI MOTOR AMERICA
Remove spring pad (B) and brake pads (A) from the caliper.

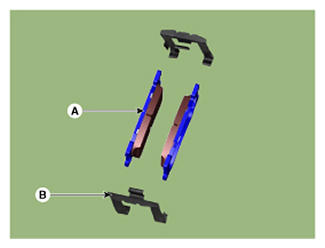

Fig 7: Exploded View Of Brake Caliper
Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Matching the direction of the arrow on the pad and the vehicle forward direction.

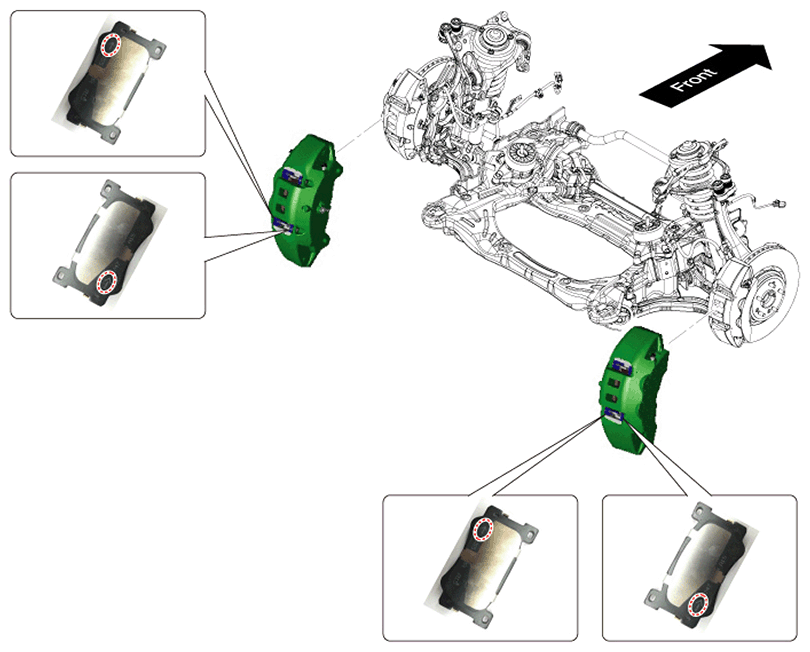

Fig 8: Brake Pad Matching Mark Location
Courtesy of HYUNDAI MOTOR AMERICA
- Apply the grease evenly on the sliding part as displayed in the illustration below.
  Grease: DAIKALUB 528D (DAIKATECH)
- Do not spill the grease on the break disc, it may damage the brake performance.
- Be careful not to leak the grease at the outside of housing.
  [Grease Applying Position]

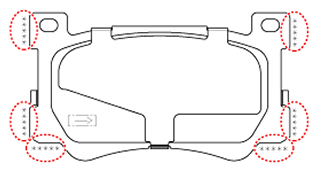

  Fig 9: Grease Applying Position
  Courtesy of HYUNDAI MOTOR AMERICA
Remove the brake disc by loosening the screw.
Tightening Torque:

4.9 - 5.9 N.m (0.5 - 0.6 kgf.m, 3.6 - 4.3 lb-ft)

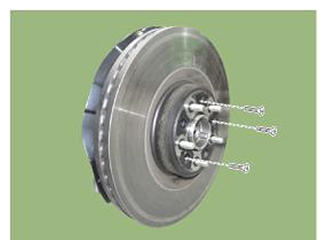

Fig 10: Removing Brake Disc With Screws
Courtesy of HYUNDAI MOTOR AMERICA
