Repair Procedures: Installation

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse the removal procedure.
NOTE:
- Use a new washer (A) whenever installing.

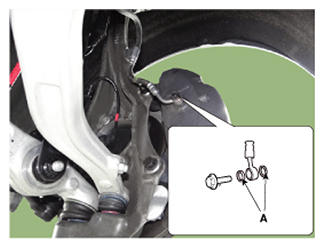

Fig 1: Locating Hose Eyebolt Washer
Courtesy of HYUNDAI MOTOR AMERICA
- Use a SST (09581-11000) when installing the brake caliper assembly.

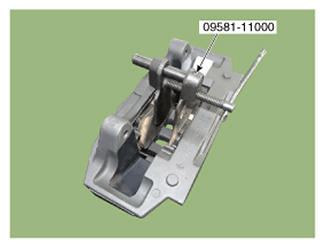

Fig 2: Special Tool (09581-11000)
Courtesy of HYUNDAI MOTOR AMERICA
After installation, bleed the brake system.
(Refer to Brake System - "BRAKE SYSTEM BLEEDING ")
