Front Brake Pad Check

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Measure the brake pad wear below table. Replace the brake pad, if this thickness is less than the service limit thickness (B).
Standard Value:

17.0 mm (0.67 in)

Pad effective Thickness:

9.0 mm (0.35 in)

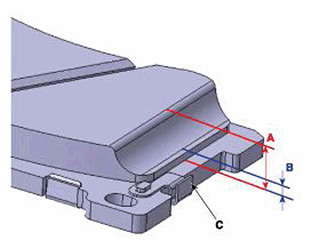

Fig 1: Checking Brake Pad Wear Measurement
Courtesy of HYUNDAI MOTOR AMERICA

Information

The brake pad wear indicator (C) and brake disc make a friction noise when brake pads are worn out below the service limit of 2.0 mm (B).

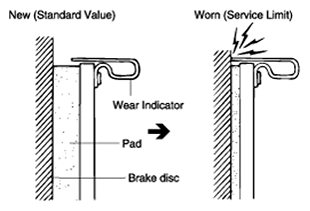

Fig 2: Checking Brake Pad Wear Indicator
Courtesy of HYUNDAI MOTOR AMERICA
