Repair Procedures: Removal
WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the brake fluid level switch connector, and remove the reservoir cap.
- Remove the brake fluid from the master cylinder reservoir with a syringe.
- Remove the wheel & tire.
- Disconnect the brake hose clip (A) and then remove the brake tube by loosening the tube flare nut (B).
Tightening Torque:
13.7 - 16.7 N.m (1.4 - 1.7 kgf.m, 10.1 - 12.3 lb-ft)

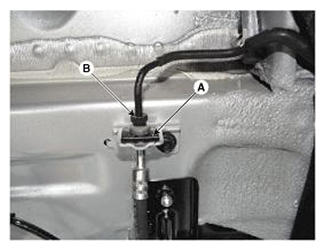

[Front]

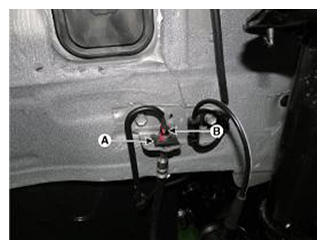

[Rear]
- Disconnect the brake hose from the brake caliper by loosening the bolt (A).
Tightening Torque:
24.5 - 29.4 N.m (2.5 -3.0 kgf.m, 18.1 - 21.7 lb-ft)

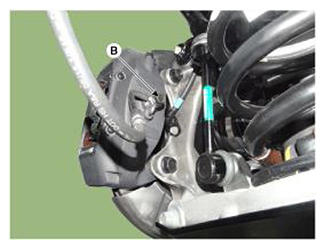

[Front]

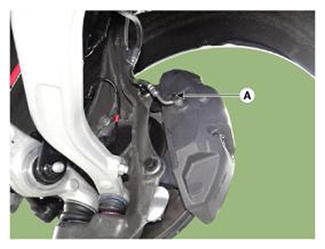

[Rear]
