Assist Door Module (ADM)

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

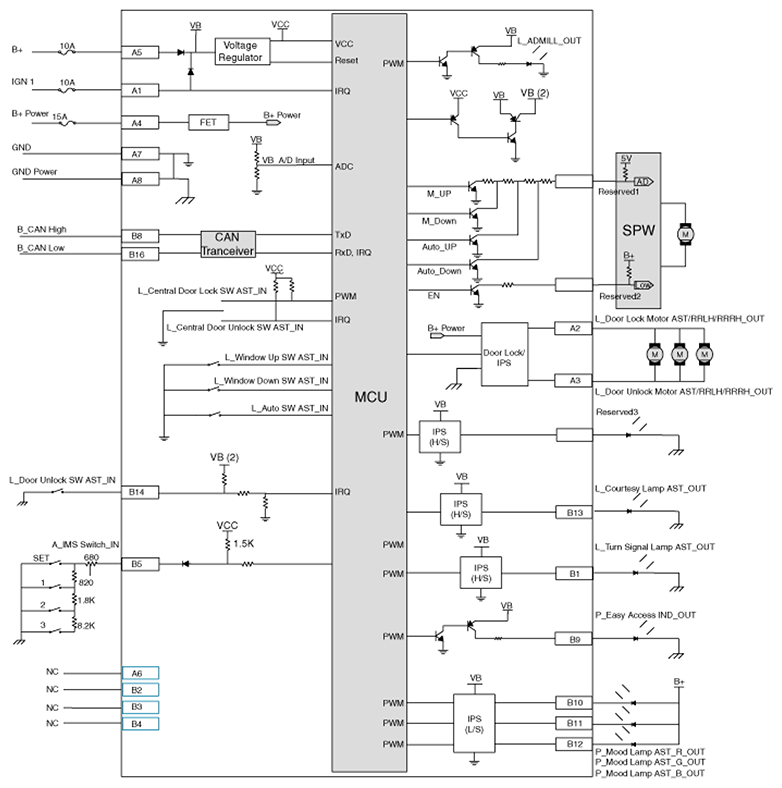

Fig 1: Assist Door Module (ADM) Circuit Diagram
G11406318Courtesy of HYUNDAI MOTOR AMERICA
