Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Pull down rear door window glass by pressing the power window glass switch.
Remove the rear door trim.
(Refer to Rear Door - "REAR DOOR TRIM ")
Remove the rear door side curtain.
(Refer to Body Electrical System - "REAR DOOR SIDE CURTAIN ")

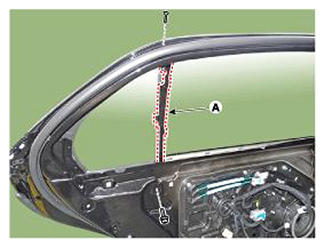

Loosen the mounting bolt and screw remove the rear door division channel (A).

Fig 1: Removing Rear Door Division Channel With Mounting Bolt And Screws
Courtesy of HYUNDAI MOTOR AMERICA

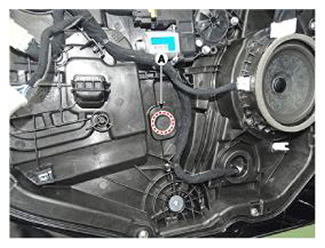

Remove the rear door window glass mounting hole plug (A).

Fig 2: Locating Rear Door Window Glass Mounting Hole Plug
Courtesy of HYUNDAI MOTOR AMERICA
Carefully adjust the rear door window glass (A) until you can view the bolt, then loosen them. Separate the glass from the glass run and carefully pull the glass out through the window slot.
Tightening Torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Fig 3: Removing Glass Out Through Window Slot
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.
Information
- Use the door switch to align the mounting hole/bolt with the hole in the door.
- If unable to operate the window motor, remove the motor and align the hole by hand.
To install, reverse the removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure the door locks and opens properly.
- Replace any damaged clips.

Remove the rear door window glass.
(Refer to Rear Door - "REAR DOOR WINDOW GLASS ")
Remove the rear door outside handle.
(Refer to Rear Door - "REAR DOOR OUTSIDE HANDLE ")

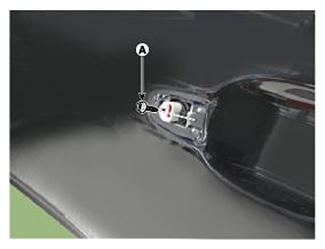

Loosen the rear door outside handle base mounting bolt (A).
Tightening Torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

Fig 1: Loosening Rear Door Outside Handle Base Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA

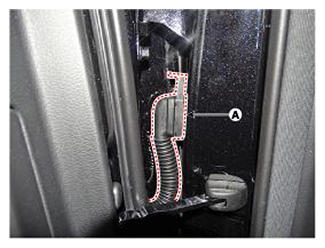

Disconnect the rear door main wiring connector (A).

Fig 2: Locating Rear Door Main Wiring Connector
Courtesy of HYUNDAI MOTOR AMERICA

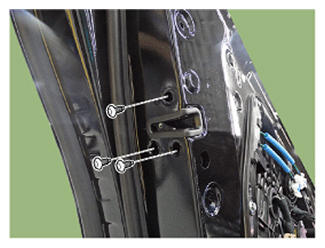

Loosen the rear door latch mounting screws.
Tightening Torque:

7.8 - 14.7 N.m (0.8 - 1.5 kgf.m, 5.8 - 10.8 lb-ft)

Fig 3: Loosening Rear Door Latch Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA

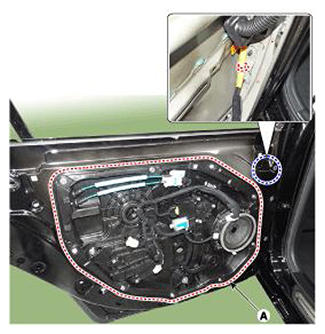

After loosening the mounting bolts, remove the rear door module (B).
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 8.5 - 10.1 lb-ft)

Fig 4: Locating Rear Door Module
Courtesy of HYUNDAI MOTOR AMERICA

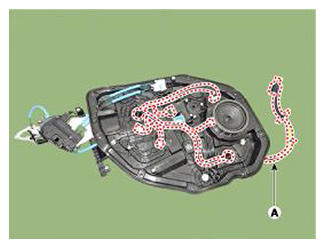

Disconnect the connectors (A) and front door module wiring harness.

Fig 5: Locating Rear Door Module Connector
Courtesy of HYUNDAI MOTOR AMERICA
Remove the rear door latch assembly.
(Refer to Front Door - "REAR DOOR LATCH ")
Remove the rear speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the rear power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly
