Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

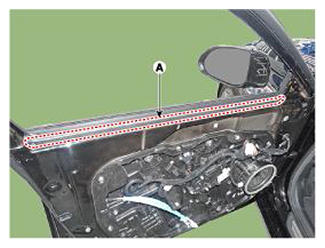

Remove the front door belt inside weatherstrip (A).

Fig 1: Locating Front Door Belt Inside Weather-Strip
Courtesy of HYUNDAI MOTOR AMERICA

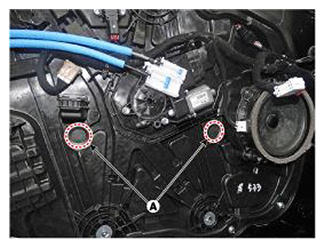

Separating the mounting plug hole (A) from the front door module.

Fig 2: Locating Mounting Plug Hole
Courtesy of HYUNDAI MOTOR AMERICA
Lower the glass by operating the power window switch until the glass mounting bolt is exposed in the plug hole.
CAUTION:
- Be careful not to drop the glass and/or scratch the glass surface.
Information
- Use the door switch to align the mounting hole/bolt with the hole in the door.
- If unable to operate the window motor, remove the motor and align the hole by hand.

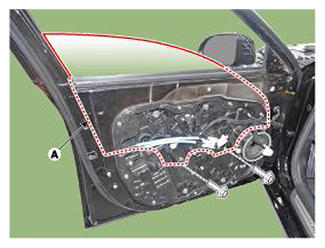

After loosening the glass mounting bolts, adjust the spacing of the glass (A) by moving the glass from side to side and then tighten the bolts.
Tightening Torque:

8.8 - 11.8 N.m (0.9 - 1.2 kgf.m, 6.5 - 8.7 lb-ft)

Fig 3: Removing Front Door Window Glass With Mounting Bolts
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure that the glass rolls up and down smoothly.
- Adjust glass position as needed.
- Make sure the door lock and opens properly.
- Check the glass run channel for damage and replace the damaged channel.
