Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Be careful not to scratch or punch the crash pad garnish and door trim upper garnish because these parts are made of weak material (real wood).
Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Be careful not to scratch the door trim and other parts.

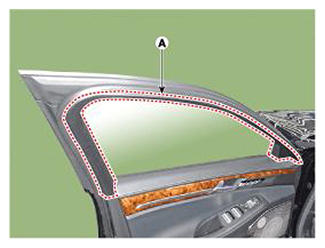

Using a flat-tip or remover, remove the frame inner cover (A).

Fig 1: Locating Frame Inner Cover
Courtesy of HYUNDAI MOTOR AMERICA
Using a flat-tip or remover, remove the front door pull handle cap (A).

Fig 2: Locating Front Door Pull Handle Cap
Courtesy of HYUNDAI MOTOR AMERICA

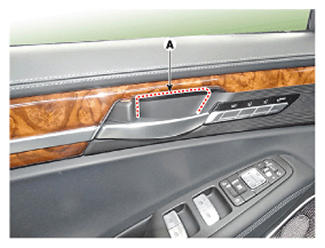

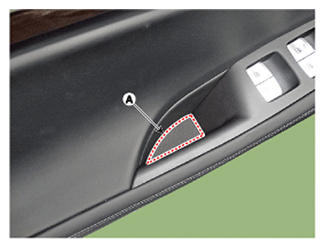

Pull the front door inside handle using a flat head screwdriver and remove the cap (A) through the hole inside the handle.

Fig 3: Locating Front Door Handle Cap
Courtesy of HYUNDAI MOTOR AMERICA

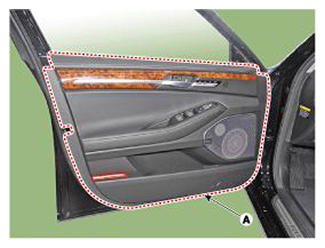

After loosening the mounting screws, remove the lower part of the front door trim (A) using a flat-tip screwdriver.

Fig 4: Locating Lower Part Of Front Door Trim
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door inside handle cage (A).

Fig 5: Locating Front Door Inside Handle Cage
Courtesy of HYUNDAI MOTOR AMERICA

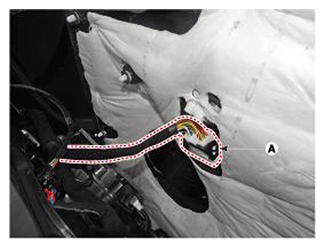

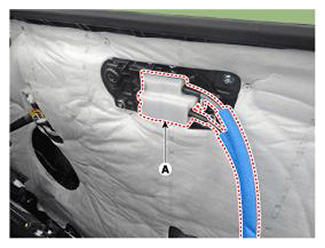

Remove the front door extension connector (A).

Fig 6: Locating Front Door Extension Connector
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Make sure the glass is operated properly.
