Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

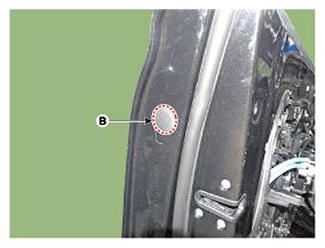

Remove the plug hole (B).

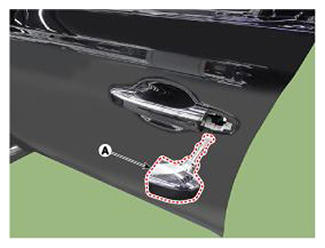

After loosening the mounting bolt, remove the front door outside handle cover (A).
Tightening Torque:

6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb-ft)

Fig 1: Locating Door Plug Hole
Courtesy of HYUNDAI MOTOR AMERICA

Fig 2: Removing Front Door Outside Handle Cover
Courtesy of HYUNDAI MOTOR AMERICA

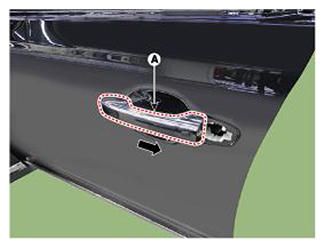

Remove the front door outside handle (A) by sliding it forward.

Fig 3: Removing Front Door Outside Handle
Courtesy of HYUNDAI MOTOR AMERICA

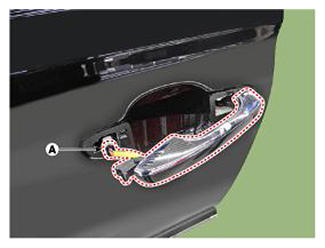

Disconnect the front door outside handle connector (A).

Fig 4: Detaching Front Door Outside Handle Connector
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information

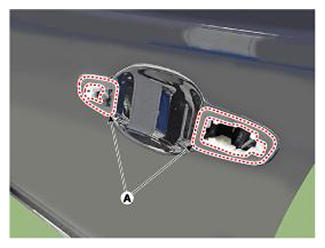

- Be sure to install the outside handle pad (A) between the outside handle and the door panel.

  Fig 5: Locating Outside Handle Pad
  Courtesy of HYUNDAI MOTOR AMERICA
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Make sure the handle is assembled without any gaps.
