Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")
Remove the front door outside handle.
(Refer to Front Door - "FRONT DOOR OUTSIDE HANDLE ")
Loosen the front door outside handle base mounting bolt (A).
Tightening Torque:

2.0 - 2.9 N.m (0.2 - 0.3 kgf.m, 1.4 - 2.2 lb-ft)

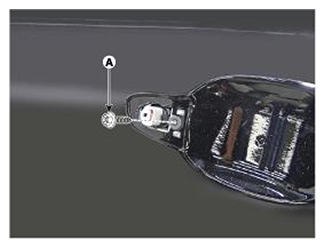

Fig 1: Loosening Front Door Outside Handle Base Mounting Bolt
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the front door main wiring connector (A).

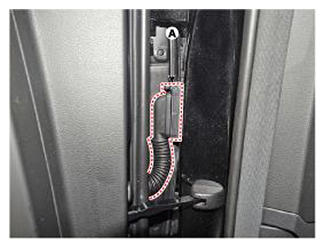

Fig 2: Locating Front Door Main Wiring Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the front door latch mounting screws.
Tightening Torque:

7.8 - 14.7 N.m (0.8 - 1.5 kgf.m, 5.8 - 10.8 lb-ft)

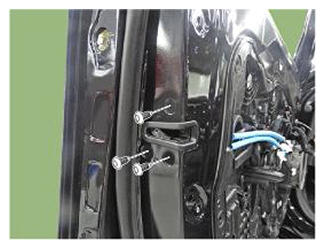

Fig 3: Loosening Front Door Latch Mounting Screws
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the outside rear view mirror connector (A).

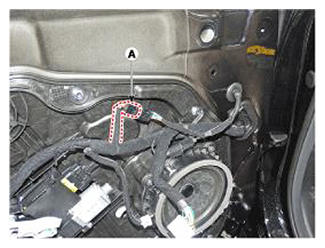

Fig 4: Locating Outside Rear View Mirror Connector
Courtesy of HYUNDAI MOTOR AMERICA
Loosen the mounting bolts and remove the front door module (A).
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 8.5 - 10.1 lb-ft)

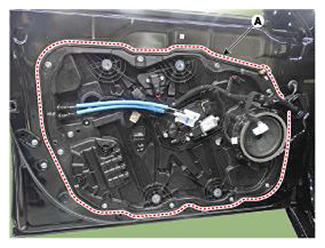

Fig 5: Locating Front Door Module
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the connectors and front door module wiring harness (A).

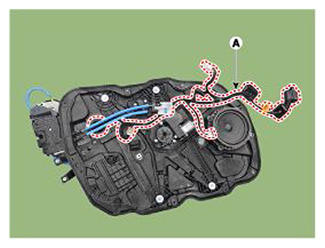

Fig 6: Locating Front Door Module Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door latch assembly.
(Refer to Front Door - "FRONT DOOR LATCH ")
Remove the front speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
Remove the side impact sensor.
(Refer to Restraint - "SIDE IMPACT SENSOR (SIS) ")
To install, reverse the removal procedure.
Information
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly.
