Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Remove the front door module.
(Refer to Front Door - "FRONT DOOR MODULE ")

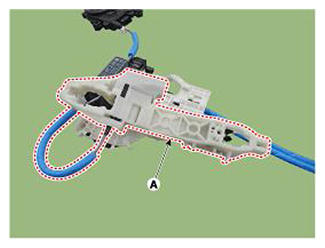

Remove the front door inside handle cage (A).

Fig 1: Locating Front Door Inside Handle Cage
Courtesy of HYUNDAI MOTOR AMERICA

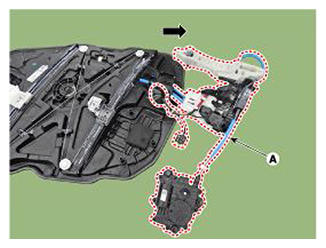

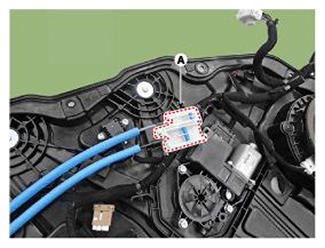

Loosen the regulator bolts and then remove the connector (A).

Fig 2: Removing Connector With Regulator Bolts
Courtesy of HYUNDAI MOTOR AMERICA

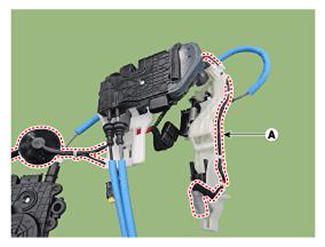

Loosen the mounting bolts and remove the front door channel assembly (A).

Fig 3: Locating Front Door Channel Assembly
Courtesy of HYUNDAI MOTOR AMERICA

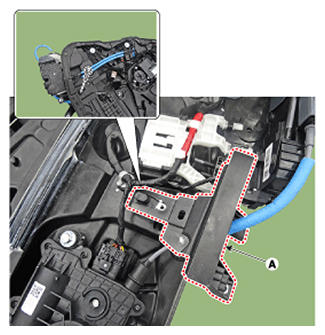

Remove the front door latch assembly (A) by pulling it in the direction of the arrow.

Fig 4: Removing Front Door Latch Assembly
Courtesy of HYUNDAI MOTOR AMERICA

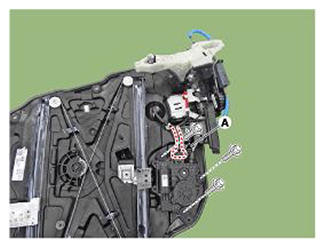

Remove the various connector (A).

Fig 5: Locating Various Connector
Courtesy of HYUNDAI MOTOR AMERICA

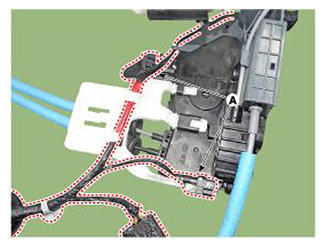

To remove the front door outside handle base connector (A), widen both sides of the wiring fastener and then push back the front door outside handle base connector.

Fig 6: Removing Front Door Outside Handle Base Connector
Courtesy of HYUNDAI MOTOR AMERICA

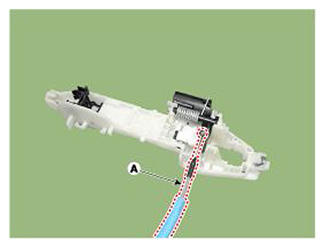

Remove the front door outside handle connector wiring harness (A).

Fig 7: Locating Front Door Outside Handle Connector Wiring Harness
Courtesy of HYUNDAI MOTOR AMERICA

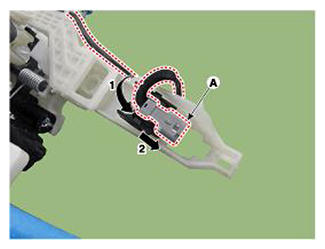

Remove the front door outside handle base (A) by pushing in the lock pins located in the back.

Fig 8: Locating Front Door Outside Handle Base
Courtesy of HYUNDAI MOTOR AMERICA
Remove the front door outside handle cable (A).

Fig 9: Locating Front Door Outside Handle Cable
Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips (or pin-type retainers).
