Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  2. Remove the glove box housing.

    (Refer to Body - "GLOVE BOX ")

  3. Remove the passenger airbag mounting bolts.

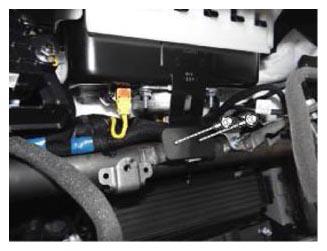

    Fig 1: Removing Passenger Airbag Mounting Bolts
    G11407815Courtesy of HYUNDAI MOTOR AMERICA
  4. Disconnect the passenger airbag connector (A).

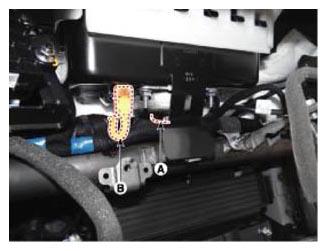

    Fig 2: Locating Passenger Airbag Connector
    G11407816Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the crash pad.

    (Refer to Body - "MAIN CRASH PAD ASSEMBLY ")

    NOTE:
    • Replace the crash pad which that has been damaged after the PAB has been deployed.
  6. Remove the passenger airbag (A) from the crash pad after loosening the mounting bolts.

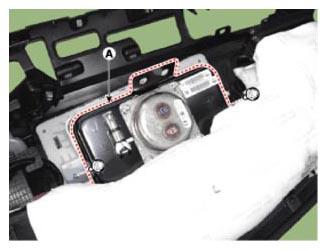

    Fig 3: Removing Passenger Airbag With Mounting Bolts
    G11407817Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • The removed airbag module should be stored in a clean, dry place with the airbag cushion up.
