Repair Procedures: Inspection

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the BSD switch connector.

Fig 1: BSD Switch Connector Terminals
Courtesy of HYUNDAI MOTOR AMERICA
Operate the BSD switch, then check for continuity between terminals of BSD switch connector.

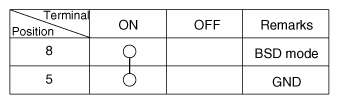

Fig 2: BSD Switch Terminal Continuity Chart
Courtesy of HYUNDAI MOTOR AMERICA
