Diagnosis With GDS

WARNING: This page is about a different car, the 2017 Genesis G90. However, it is still accessible from the selected car via links, so may be relevant.

BSD system defects can be quickly diagnosed with the GDS. GDS operates actuator quickly to monitor, input/output value and self diagnosis.
Connect the cable of GDS to the data link connector in driver side crash pad lower panel, and turn on the GDS.
Select the vehicle model and then BSD system.
Select "Input/output monitoring", if you want to check current data of BSD system.

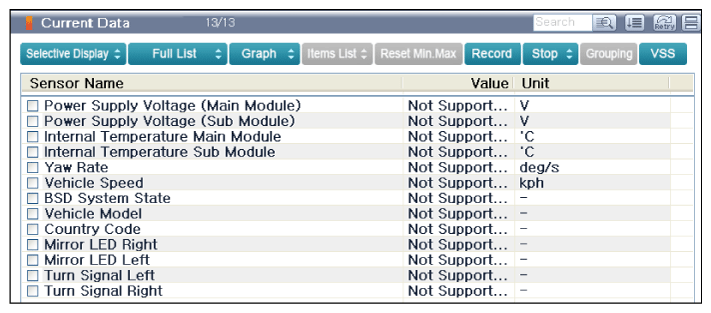

Fig 1: Scantool Display - Current Data
Courtesy of HYUNDAI MOTOR AMERICA
If you want to check each module operation forcefully, select "Actuation test".

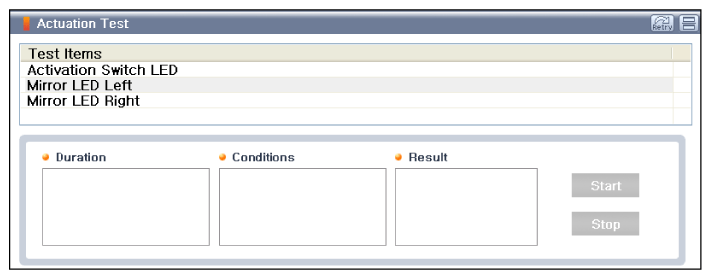

Fig 2: Scantool Display - Actuation Test

Courtesy of HYUNDAI MOTOR AMERICA
