Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
NOTE:
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
  • When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
  • Take care not to bend or scratch the trim and panels.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front pillar trim.

    (Refer to Interior Trim - "FRONT PILLAR TRIM ")

  3. Remove the cowl side trim.

    (Refer to Interior Trim - "COWL SIDE TRIM ")

  4. Remove the AVN front monitor.

    (Refer to FRONT MONITOR Body Electrical System - )

  5. Remove the AVN head unit.

    (Refer to Body Electrical System - "AVN HEAD UNIT ")

  6. Remove the instrument cluster.

    (Refer to Body Electrical System - "INSTRUMENT CLUSTER ")

  7. Remove the lower crash pad panel [RH].

    (Refer to [RH]

  8. Remove the steering wheel.

    (Refer to STEERING WHEEL )

  9. Remove the multifunction switch assembly.

    (Refer to Body Electrical System - "MULTIFUNCTION SWITCH ")

  10. After loosening the mounting nuts, remove the HUD (Head Up Display) bracket (A).
    G12491077Courtesy of HYUNDAI MOTOR AMERICA
  11. Disconnect the head up display connector.

    (Refer to Body Electrical System - "HEAD UP DISPLAY SYSTEM ")

  12. Disconnect the security lamp connector (A).
    G12491078Courtesy of HYUNDAI MOTOR AMERICA
  13. After loosening the mounting bolts and releasing the airbag connector locking buttons, remove the active vent connectors (A).
    G12491079Courtesy of HYUNDAI MOTOR AMERICA

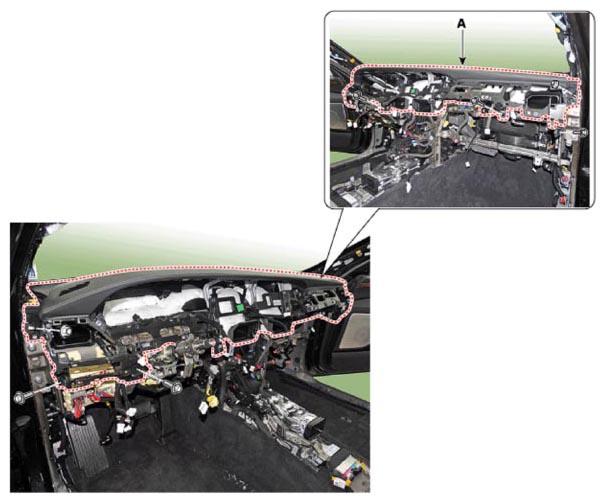

  14. After loosening the mounting bolts and nuts, remove the main crash pad assembly (A).
    G12491080Courtesy of HYUNDAI MOTOR AMERICA
  15. Disconnect the speaker connector (A).
    G12491081Courtesy of HYUNDAI MOTOR AMERICA
  16. Disconnect the passenger's airbag connectors (A).
    G12491082Courtesy of HYUNDAI MOTOR AMERICA
  17. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
