Repair Procedures: Replacement
CAUTION:
- Put on gloves to prevent hand injuries.
NOTE:
- When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
- When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
- Take care not to bend or scratch the trim and panels.
- Remove the Rear Seat Cushion Assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the Rear Seat Back Assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
- Remove the Rear Door Scuff Trim.
(Refer to Interior Trim - "DOOR SCUFF TRIM ")

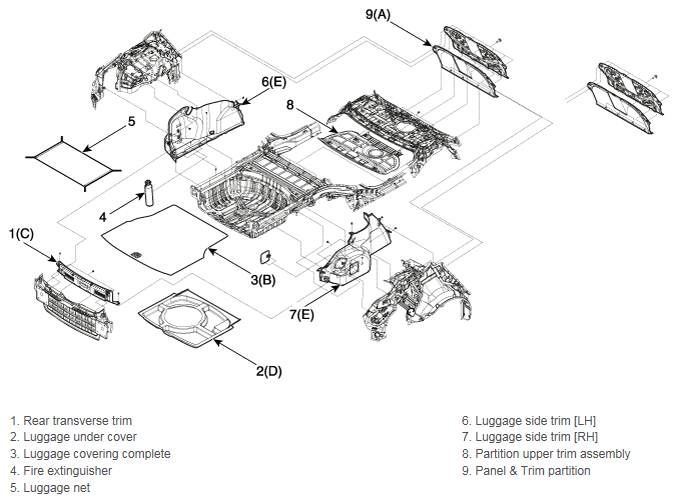

- After loosening the mounting screws, then remove the panel & trim partition (A).
- Remove the luggage covering complete (B).
- Remove the rear transverse trim (C).
- Remove the luggage under cover (D).
- After loosening the mounting screws, remove the luggage side trim (E).
- To install, reverse the removal procedure.
Information
- Replace any damaged Clips (or pin-type retainers).
