Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the Console Armrest Tray (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the Console Armrest Service Hall (A).

Courtesy of HYUNDAI MOTOR AMERICA
Loosen the Console Armrest Mounting Bolts (A).

Courtesy of HYUNDAI MOTOR AMERICA
Using a Screwdriver or remover, remove the Console Upper Complete Assembly (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the Connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the Connectors (A).
Remove the Front Console Armrest.

Courtesy of HYUNDAI MOTOR AMERICA

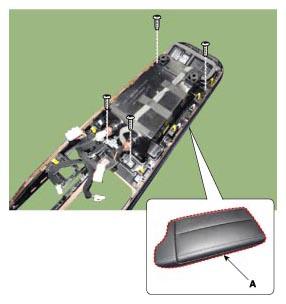

After loosening the Mounting Screws, remove the Front Console Arm-Rest (A).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Replace any damaged Clips (or pin-type Retainers).
- Make sure the connector is connected properly.
