Repair Procedures: Inspection

  1. Disconnect the power latch and cinching connectors.
    G12719227Courtesy of HYUNDAI MOTOR AMERICA

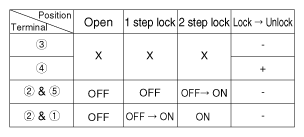

  2. Connect the power latch terminals directly to battery voltage (12V) and check that the motor operates smoothly.
    G12719228Courtesy of HYUNDAI MOTOR AMERICA
    G12719229Courtesy of HYUNDAI MOTOR AMERICA

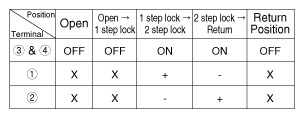

  3. Connect the power cinching terminals directly to battery voltage (12V) and check that the motor operates smoothly.
    G12719230Courtesy of HYUNDAI MOTOR AMERICA
    G12719231Courtesy of HYUNDAI MOTOR AMERICA
