Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the steering wheel assembly.

    (Refer to Steering System - "STEERING WHEEL ")

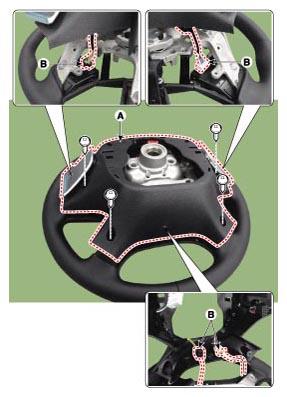

  3. Remove the steering wheel back cover (A) after loosening the screws and disconnecting the connectors.
    G12718843Courtesy of HYUNDAI MOTOR AMERICA
    G12718844Courtesy of HYUNDAI MOTOR AMERICA
    G12718845Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the steering wheel remote control (A) after loosening the mounting screw.
    G12718846Courtesy of HYUNDAI MOTOR AMERICA
    G12718847Courtesy of HYUNDAI MOTOR AMERICA
