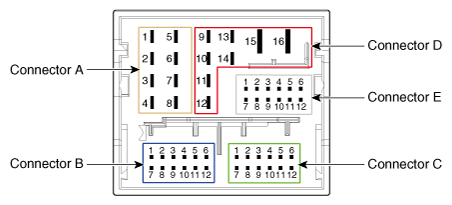

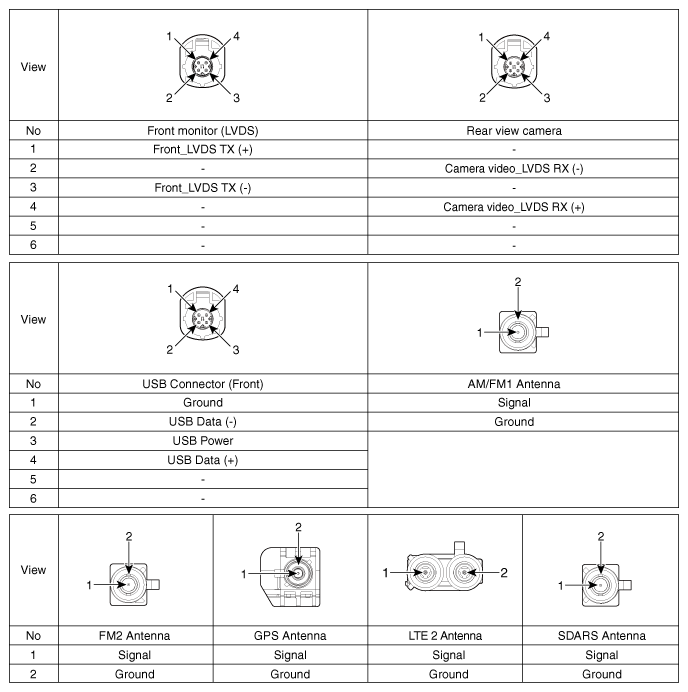

Connector Pin Information
| No | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | External amplifier SPDIF (+) | I-CAN (High) | AUX Input (Left) |
| 2 | External amplifier SPDIF (-) | I-CAN (Low) | AUX Input (Right) |
| 3 | Navigation voice (+) | M-CAN (High) | AUX Detect |
| 4 | Navigation voice (-) | M-CAN (Low) | - |
| 5 | SPDIF Shield ground | Local CAN (High) | Keypad (+) |
| 6 | - | Local CAN (Low) | Illumination (+) |
| 7 | - | - | AUX Shield ground |
| 8 | USB Ground | - | - |
| 9 | - | Reverse signal input | |
| 10 | - | Vehicle speed signal input | |
| 11 | - | Keypad (-) | |
| 12 | - | Illumination (-) |
| No | Connector D | No | Connector E |
|---|---|---|---|
| 9 | - | 1 | Front MIC 1 (+) |
| 10 | - | 2 | Front MIC 2 (+) |
| 11 | ACC | 3 | MIC shield ground |
| 12 | IGN 1 | 4 | - |
| 13 | Power control | 5 | - |
| 14 | Antenna power | 6 | - |
| 15 | Battery (+) | 7 | Front MIC 3 (+) |
| 16 | Ground | 8 | Front MIC (-) |
| 9 | - | ||
| 10 | RS232 ground | ||
| 11 | RS232 RX | ||
| 12 | RS232 TX | ||
