System Calibration
CAUTION:
This menu is applied only if vehicle has a Steel suspension
- Select "AFLS" menu after selecting a vehicle.

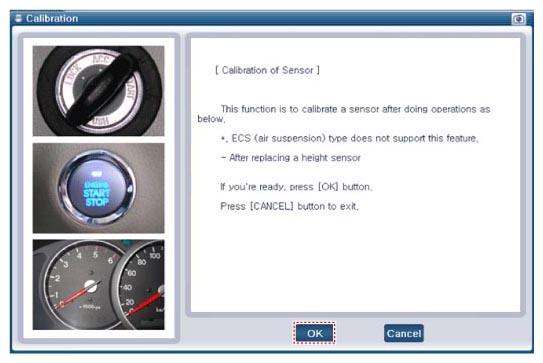

- The GDS will show the AFLS calibration function steps.
 Courtesy of HYUNDAI MOTOR AMERICA
|

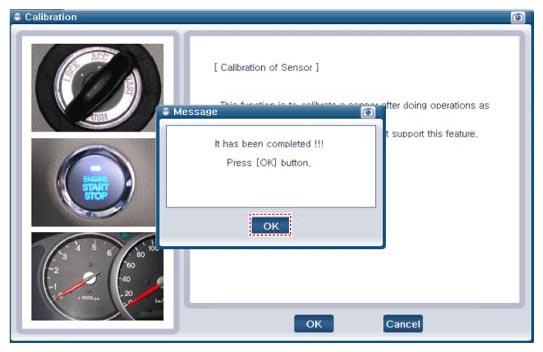

- When "System Calibration" is done, display below.
NOTE:
* When system is not calibrated or downloaded parameters, "AFLS" warning signal is flash
 Courtesy of HYUNDAI MOTOR AMERICA
|
