Variant Coding

After replacing the LKAS Unit with a new one, must be performed the "Variant Coding" procedure.

1. Connect the cable of GDS to the data link connector in driver side crash pad lower panel, turn the power on GDS.
2. Select th "Car model" and the "Lane Keeping Assist System".

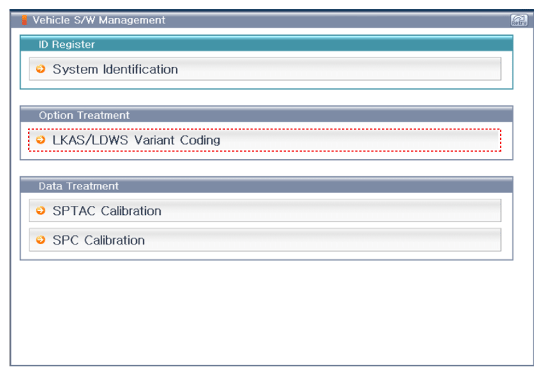

3. Select Variant coding mode to perform.

Courtesy of HYUNDAI MOTOR AMERICA
