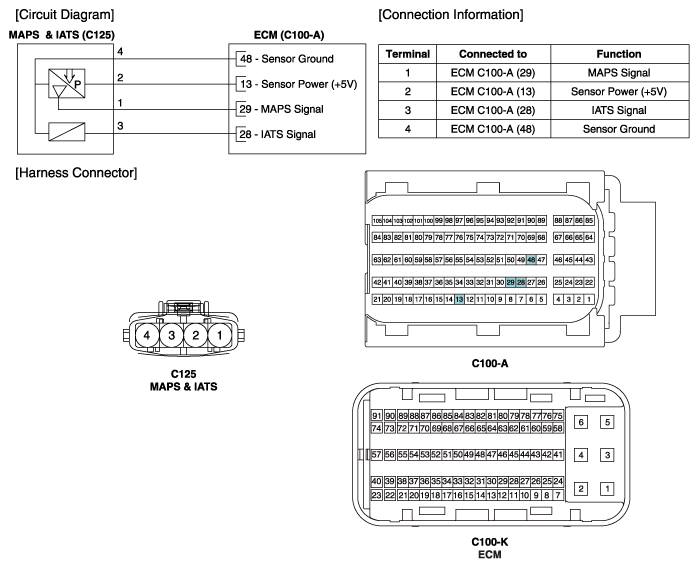

Home >> Genesis >> 2019 >> G90 3.3T Premium, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.3L >> Intake Air Temperature Sensor (IATS) >> Schematic Diagrams >> Circuit Diagram
