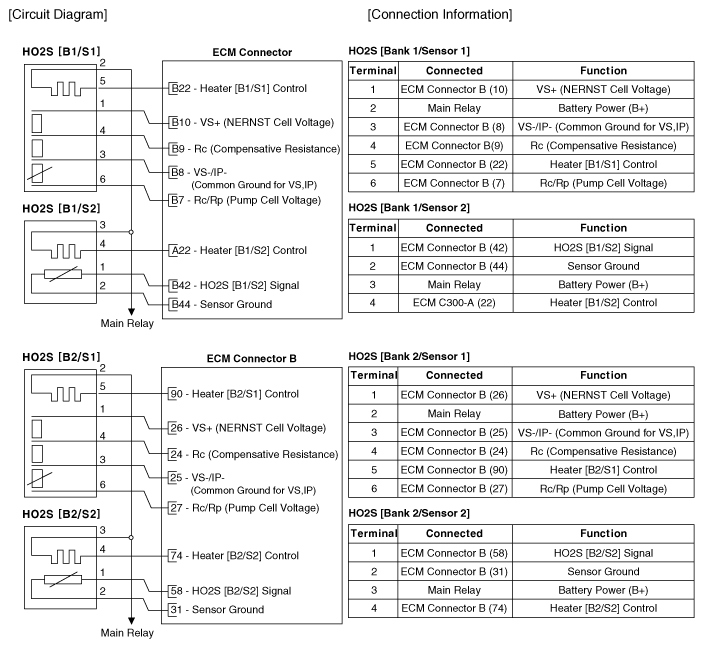

Home >> Genesis >> 2019 >> G80 5.0 Ultimate, RWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 5.0L >> Heated Oxygen Sensor (HO2S) >> Schematic Diagrams >> Circuit Diagram >> Notes
