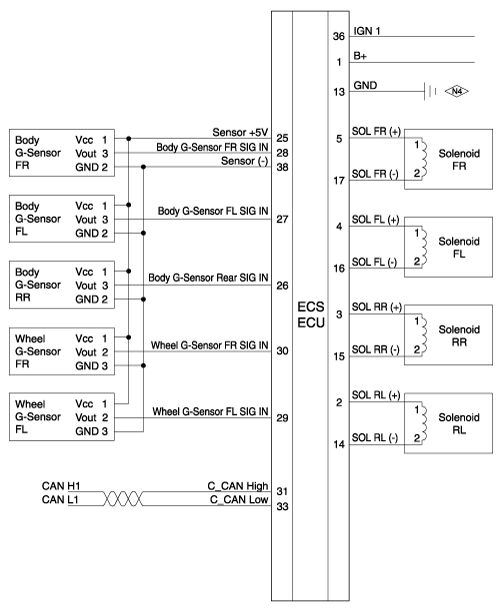

Schematic Diagrams

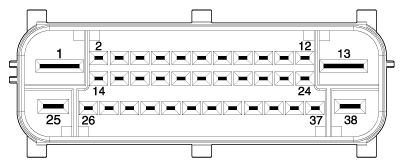

- Connector Input/Output
No. Description Pin No. Description 1 Battery (+) 20 - 2 Solenoid RL (+) 21 - 3 Solenoid RR (+) 22 - 4 Solenoid FL (+) 23 - 5 Solenoid FR (+) 24 - 6 - 25 G-sensor power 7 - 26 Body G-sensor signal RR 8 - 27 Body G-sensor signal FL 9 - 28 Wheel G-sensor signal FR 10 - 29 Wheel G-sensor signal FL 11 - 30 Wheel G-sensor signal FR 12 - 31 CAN HIGH 13 Ground 32 - 14 Solenoid RL (-) 33 CAN LOW 15 Solenoid RR (-) 34 - 16 Solenoid FL (-) 35 - 17 Solenoid FR (-) 36 IGN (+) 18 - 37 - 19 - 38 G-Sensor Ground - System Circuit
