Components And Components Location: Components: [4WD]

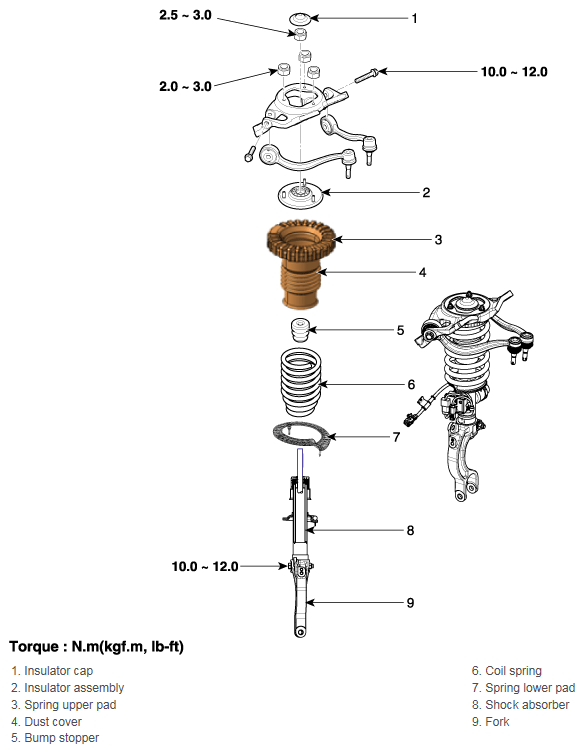

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specification (4WD)

G12663277

Courtesy of HYUNDAI MOTOR AMERICA
