Components And Components Location: Components: [2WD]

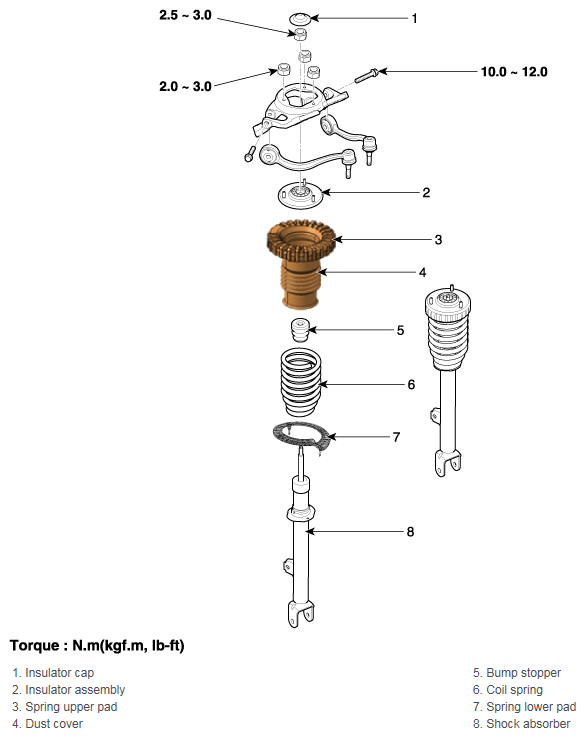

Fig 1: Exploded View Of Front Strut Assembly Components With Torque Specification (2WD)

G12663276

Courtesy of HYUNDAI MOTOR AMERICA
