Home >> Genesis >> 2019 >> G80 3.8, RWD >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Rear Axle Assembly >> Rear Hub - Carrier >> Components And Components Location >> Components

Components And Components Location: Components

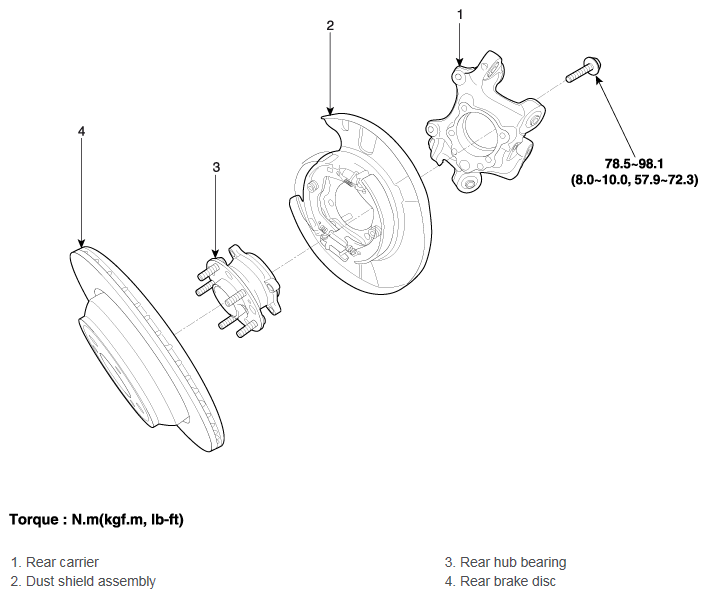

Fig 1: Rear Hub Carrier Components With Torque Specification
G12656749Courtesy of HYUNDAI MOTOR AMERICA
