Repair Procedures: Replacement

CAUTION:

NOTE:

When prying with a flat-tip screwdriver or use a prying trim tool, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the rear seat cushion assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")
Remove the rear seat back assembly.
(Refer to Rear Seat - "REAR SEAT ASSEMBLY ")

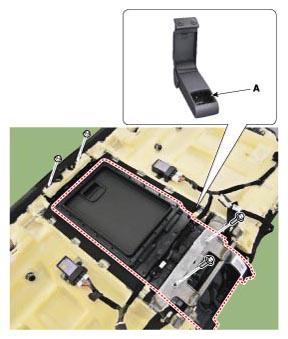

Loosen the mounting bolts and nuts and remove the rear back armrest (A).
Disconnect the connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
*
- Twist the headrest guide to pull it out.
Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
- Be careful not to damage the steel clip (B).
Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the Rear Curtain Switch Connector (A).
(Refer to Body Electrical System - "REAR CURTAIN SWITCH ")

Courtesy of HYUNDAI MOTOR AMERICA
Remove the wiring mounting clips (A).

Courtesy of HYUNDAI MOTOR AMERICA
After loosening the mounting bolts and nuts, remove the rear back armrest (A).
Tightening Torque:

19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
