Repair Procedures: Replacement

CAUTION:

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

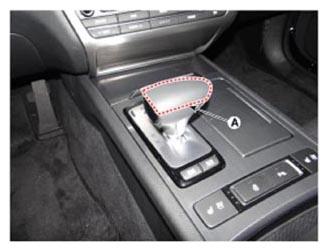

Using a screwdriver or remover, remove the knob upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

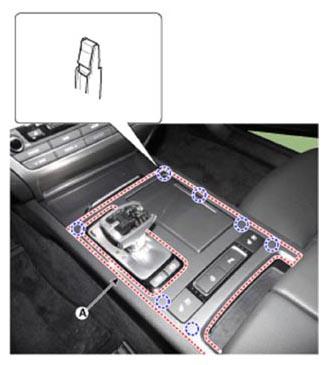

Using a screwdriver or remover, remove the console upper cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

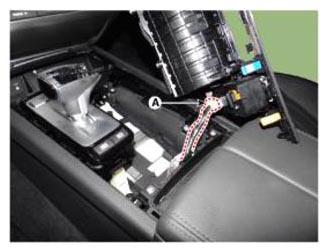

Disconnect the main connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

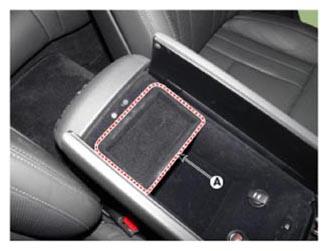

Remove the console armrest tray (A).

Courtesy of HYUNDAI MOTOR AMERICA

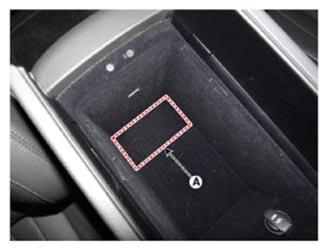

Remove the console armrest service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

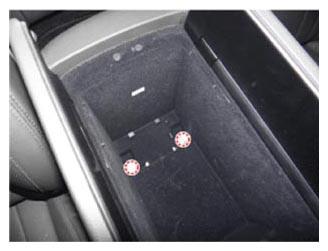

Loosen the console armrest mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

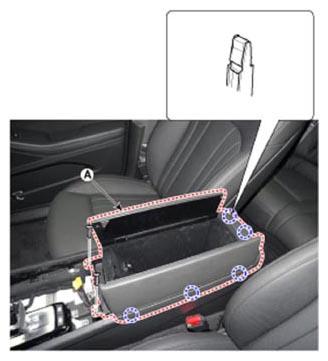

After loosening the mounting screws, remove the floor console armrest (A).

Courtesy of HYUNDAI MOTOR AMERICA

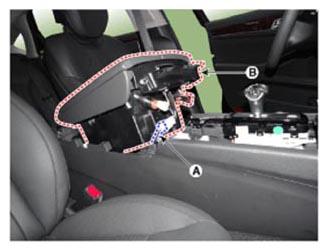

Disconnect the connector (A) and then remove the floor console armrest (B).

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
