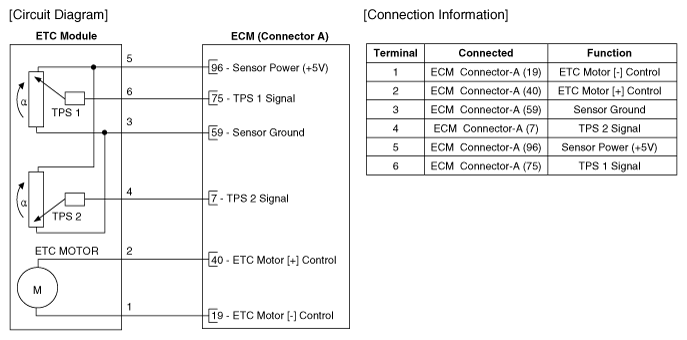

Home >> Genesis >> 2019 >> G80 3.8, AWD >> Repair and Diagnosis >> Engine Performance >> Engine Control Systems >> Engine Control System - 3.8L >> ETC (Electronic Throttle Control) System >> Schematic Diagrams >> Circuit Diagram >> Notes
