Monitoring DTC Status
- Connect GDS to "DATA LINK CONNECTOR (DLC)".
- IG key "ON", engine "OFF".

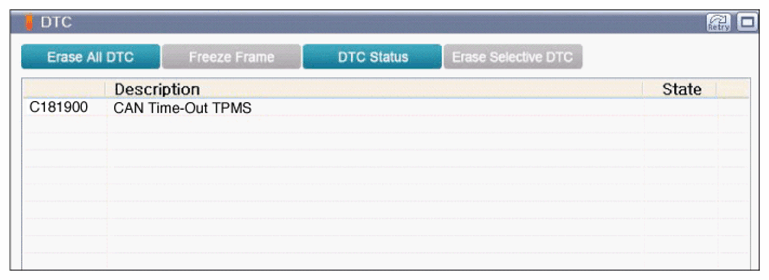

- Select "Diagnostic Trouble Codes (DTC)" with GDS.
- Monitor the diagnostic trouble code and present of the trouble code.
- Erase the DTC.
- Is the DTC output again?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Fault is intermittent caused by poor contact in TPMS ("TIRE PRESSURE MONITORING MODULE") connector or was repaired and TPMS memory was not cleared.
→ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage.
→ Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
