Description And Operation: Description

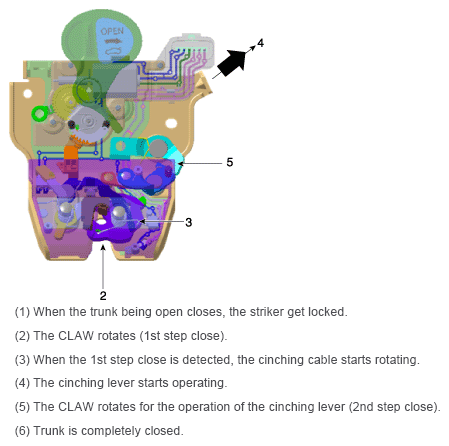

  1. Power latch lock flow
    G12658919Courtesy of HYUNDAI MOTOR AMERICA
  2. Power latch unlock flow
    1. The operation principle of PTM unlock process is equal to that of the general trunk latch.
    2. The unlock process is completed by using the motor in the power latch.
