Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition OFF switch and the disconnect the battery negative (-) cable.
  2. Remove the brake fluid from the master cylinder reservoir with a syringe.
    • Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
    • Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.

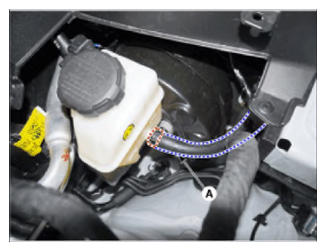

  3. Separate the reservoir hose (A).
    G13539641Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the brake booster.

    (Refer to Brake System - "BRAKE BOOSTER ")

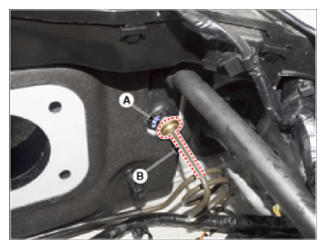

  5. Remove the clip (A) and then separate the clutch tube (B).
    G13539642Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  7. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

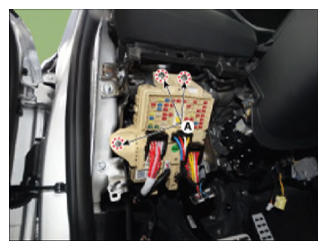

  8. Loosen the mounting nut (A) and separate the interior junction block.
    G13539643Courtesy of HYUNDAI MOTOR AMERICA

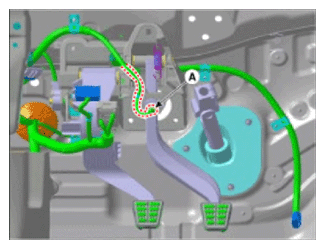

  9. Disconnect the stop lamp switch connector (A).
    G13539644Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the clutch & ignition lock switch.

    Tightening torque  :

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    1. Loosen the clutch & brake pedal upper mounting bolt and nuts (A).
      G13539645Courtesy of HYUNDAI MOTOR AMERICA
    2. Loosen the clutch & brake pedal mounting nuts (B).
      G13539646Courtesy of HYUNDAI MOTOR AMERICA

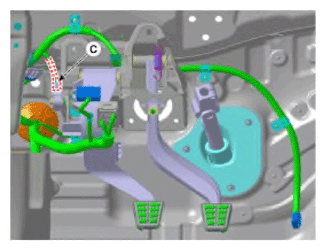

    3. Disconnect the clutch & ignition lock switch connector (C).
      G13539647Courtesy of HYUNDAI MOTOR AMERICA
    4. Remove the clutch & brake pedal assembly (D).
      G13539648Courtesy of HYUNDAI MOTOR AMERICA
    5. Loosen the bolts and then removing the clutch & ignition lock switch (A).
      G13539649Courtesy of HYUNDAI MOTOR AMERICA
