Hood Switch Inspection

  1. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

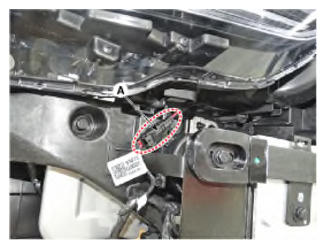

  2. Disconnect the hood switch connector (A).
    G13543488Courtesy of HYUNDAI MOTOR AMERICA
  3. Check for continuity between the terminals and ground as shown below.

    (Refer to Body - "HOOD LATCH ")

    G13543489Courtesy of HYUNDAI MOTOR AMERICA
